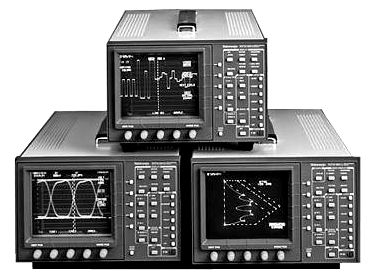

Tektronix WFM601A

The WFM601A provides accurate real-time monitoring for creative adjustment of component signal levels and timing on source and processing equipment. The WFM601A is designed for use in camera control and video graphics applications to assure that the desired creative effects reach the viewer. It accepts two serial digital component input signals and displays the selected signal in traditional, easy-to-analyze component analog form.



FEATURES

  • CE Marking
  • Component Vector Display
  • Picture Display of Y Channel
  • Nine User Front-panel Presets
  • Waveform Cursors and Markers
  • Waveform Parade and Overlay Displays
