Alphatron EVF

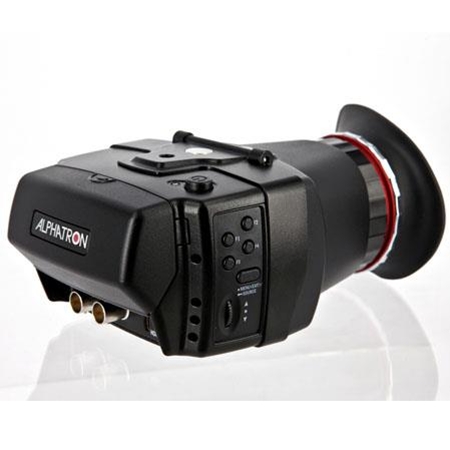

The Alphatron Broadcast Electronics Electronic Viewfinder EVF-035W-3G features a 3.54" LED-backlit LCD and displays 24-bit RGB at 960 x 640 resolution in a 16:9 aspect ratio. Brightness is at 500 nit and contrast ratio at 1000:1. The viewing angle is 160 x 160°. The unit comes equipped with an adjustable diopter and a manual lens shutter for protection of the LCD. A 6" D-tap cable is included. Connections consist of SDI and mini-HDMI inputs and outputs, a phone jack for calibration and a USB port for software upgrades. You can loop out from both SDI and HDMI and perform conversion out from HDMI to SDI. (If your camera has a mini-HDMI port, like many cameras do, then you will need a mini-HDMI to mini-HDMI cable to connect the camera to this viewfinder.)


  • 3.54" LED Backlit LCD
  • 24-Bit RGB 960 x 640 Resolution
  • Waveform & Vectorscope via Update
  • 500 Nit Brightness / 1000:1 Contrast
  • 16:9 Aspect Ratio
  • 160 x 160˚ Viewing Angle
