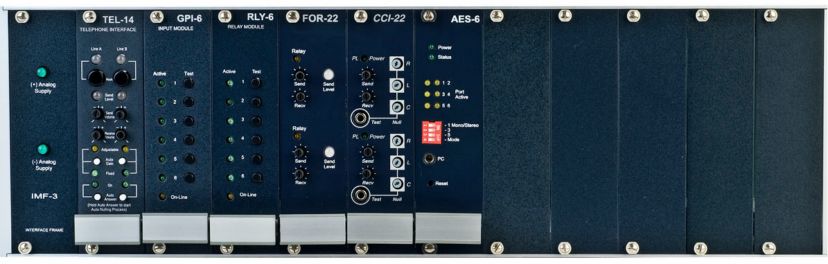

Product Image

Clear-Com IMF-3

The IMF-3 holds up to 11 interface modules in a 3RU chassis. Modular rear-mounted connector units feature two RJ-45 connectors to the matrix ports and two DB-9s attaching the connected devices. The frame is used in conjunction with the PSU-101 rack-mountable dual power supply, providing power to the enclosed interfaces.


  • Weight: 10 lbs (4.5 Kg).
  • Plug-in Module Capacity: 11.
  • Size: 5.25" H x 19" W x 13.75" (133 x 483 x 345 mm).
  • Power Requirements: 200 mA from PSU-101 power supply.
  • Rear Panel Connectors: (2) 10-pin Jones (for PSU-101 power supply).
  • To Matrix Frame: (22) RJ-45 (when all interface modules are installed).
  • Interface I/O: (22) DB9-M (when all interface modules are installed).
