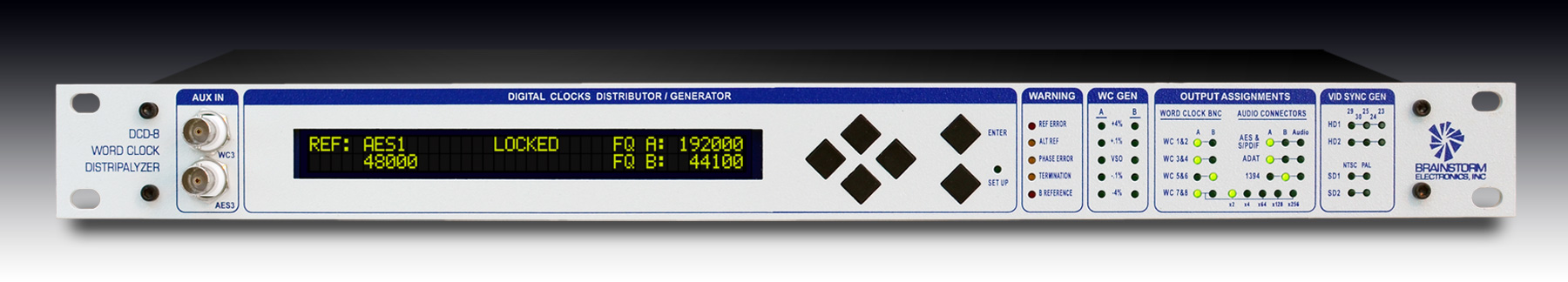

Brainstorm DCD-8 Woodclock Generator

Brainstorm DCD-8 Woodclock Generator

With the proliferation of digital equipment, it is becoming increasingly difficult to keep everything synchronized and locked. Carrying on in the tradition of the Brainstorm Distripalyzer, the DCD-8, with 10 inputs and 17 outputs, is the perfect solution! Offering not only exceptional stability but also remarkable flexibility, the DCD-8 is ideal for most situations, whether you have a small sound studio or a large post-production facility with NTSC, PAL or HD systems. Clock generating, distributing, clean up, analyzing, format converting, it does it all for a very affordable price.

Inputs available are WC, GPS, AES, S/PDIF ADAT and video. Any of those external sources can be used as a reference. Or set the DCD-8 to "internal" and use it as a master clock generator. FireWire is also included, which some manufacturers only offer as a costly option. So, if you need to reference your Mac or PC to the DCD-8 via FireWire, you’re ready to go.

The DCD-8 will feel right at home in a video studio. The base model accepts NTSC, PAL, and even HD tri-level sync. And the optional video generator VSG-4 can generate many different formats of HD tri-level sync, as well as NTSC and PAL.

For Gearboxing, the DCD-8’s exceptional flexibility enables you to generate any rate from any source. The DCD-8 can also generate multiple rates simultaneously: 3 digital audio rates (up to 192K) and 4 video sync rates (2 SD and 2 HD). All locked to the same reference.

While all this is going on, the DCD-8 analyzer keeps you confident everything is running smoothly and helps you identify problems when necessary (phase, termination,frequency). As a bonus, the DCD-8 even does format conversion between the different audio I/O’s.

FEATURES

  • Ultra Low Jitter Word Clock Generator
  • Extracts a clean Word Clock from Audio (AES, S/PDIF, ADAT) or Video (Incl. HD)
  • Generates multiple rates simultaneously
  • Word Clock Distributor
  • World Clock Analyzer
  • Audio Router/ Format converter (FireWire included)
  • Audio Reclocker
